412427/1957 - Bowaters Northfleet - Industrial Pale Green - DCC Sound Fitted

412427/1957 - Bowaters Northfleet - Industrial Pale Green - DCC Sound Fitted

SKU ACC2865-DCC
Availability:
On Pre Order
$484.00 - $484.00
$484.00
$484.00 - $484.00
$484.00

Pre Order Item

This item is on Pre Order, with an expected delivery date of Quarter 1, 2025

Ruston 412427 was built new for Bowaters Packaging Ltd, for use at their newly expanded Northfleet site in Kent, leaving Boultham on 25 March 1957. The Thames Mills site at Northfleet had resumed producing newsprint at the end of 1945, with supplies of pulpwood coming from Canada and Scandinavia, and the manufacturing output had doubled by 1957. The pulpwood was unloaded from the ships berthed at the deep water jetty on the Thames and from there, the raw material was conveyed to the mills by the internal railway system. With the gradual decline in newsprint production, Thames Mills was closed and transferred into the ownership of Bowaters’ Northfleet Terminals Ltd group and in 1981 412427 was donated by NTL to the fledging North Downs Steam Railway, then to Chatham Dockyard, Stone (Dartford), and Tunbridge Wells, before finally moving to Oswestry, Shropshire in 2007 for use on the Cambrian Railway.

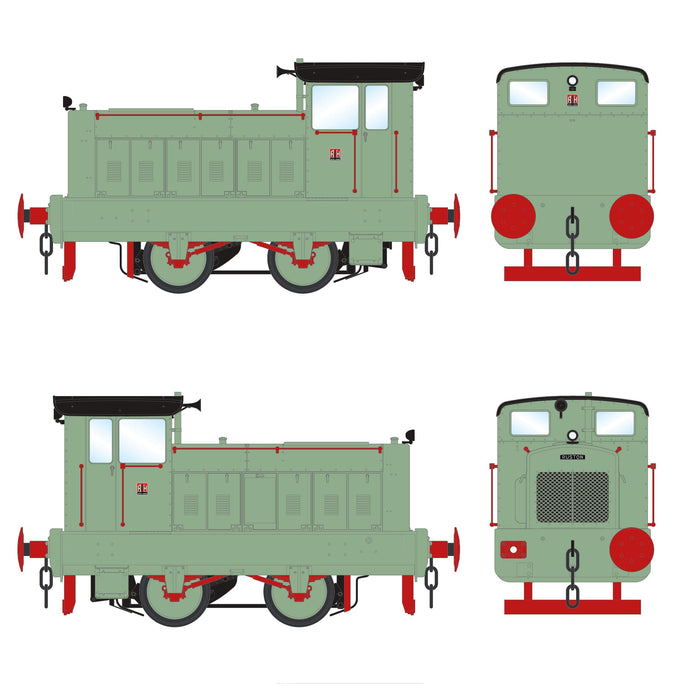

Sample Photographs are for illustrative purposes only. Detail variations will differ from model to model

DESIGN SPECIFICATION and CONSIDERATIONS

  • Die-cast metal chassis, body frame and footplate, with plastic cab and engine panels.
  • Scale length of 143.8mm over buffers, 54.85mm wide and height over cab of 70mm.
  • Wheelbase of 40.54mm, for all vehicles, allowing operation over a minimum radius of 1020mm (2nd radius set-track).
  • Choice of metal 3-link, or screw couplings for prototypical coupling.
  • Brake blocks fitted and aligned with wheel centres for 0 Gauge, ensuring that they do not rub on wheel rims.
  • Single style of 21mm solid wheel, correctly profiled both on the inside and outside and chemically blackened, set in blackened brass bearings or contact strips and conforming to Accurascale standards of 29.2mm back-to-back, on 4.763mm diameter axles.
  • Fully detailed die-cast underframe with all cylinders, linkages and piping applied separately
  • Eroded metal, plastic and wire detail parts, including (but not limited to) handrails, door handles, lamp brackets, brake gear, brake discs, draw gear, vents, louvres, radiator grilles and builders’ plates.
  • Prism free flush glazing.
  • Easily removable cab roof, to allow access to cab interior for customer detailing.
  • Sprung metal buffers, and draw hooks.
  • Authentic livery, markings and numbers, accurate to time period modelled, achieved by use of part painting and pad printing.

  • HIGH PERFORMANCE TRACTION and MECHANISM, TO INCLUDE:
  • Centrally mounted, best quality 5-pole skew-wound motor, with flywheel, driving both axles.
  • All-wheel pickup.
  • Helical gear box for maximum performance and slow speed running.
  • Gearing arranged so locomotive can achieve a scale maximum top speed of 15.4 mph (24.78 kmh), with a load of 1.1kg.
  • DCC ready with PowerPack capacitor for uninterrupted power, or similar stay alive arrangement.

Lighting and DCC Specifics

LIGHTING and DCC FEATURES, TO INCLUDE:

  • Designed around PluX22 ESU Decoders with easy access to decoder via removable bonnet.
  • Switchable shunting lights.
  • Full cab interior lighting, set at correct colour temperature.
  • Permanently fitted speakers.
