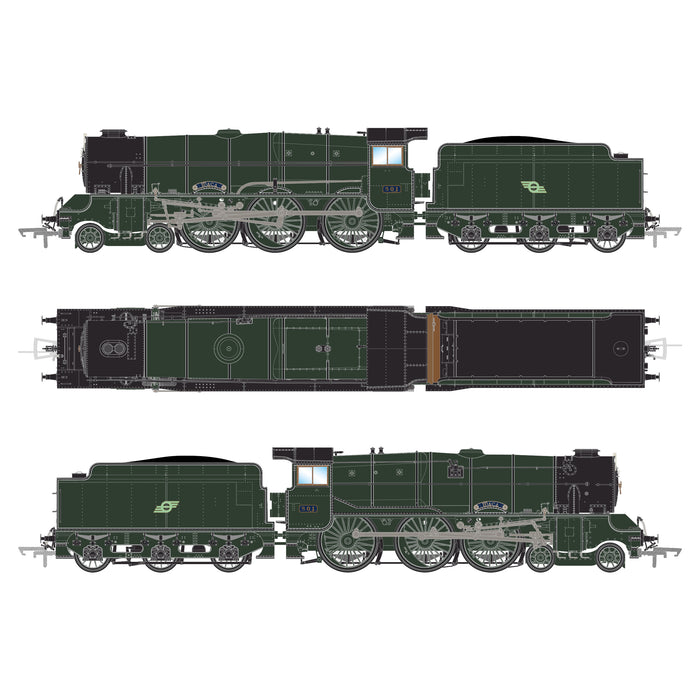

GSR800 - 801 Maca - CIE (FS)

GSR800 - 801 Maca - CIE (FS)

SKU IRM1305
Availability:
On Pre Order
$0
$473.00 - $473.00
$473.00
$473.00 - $473.00
$473.00

Pre Order Item

This item is on Pre Order, with an expected delivery date of Q3, 2026

The three 4-6-0 Class 800 locomotives; 800 Maeḋḃ, 801 Maċa and 802 Táilte, were designed by the Great Southern Railway’s Chief Mechanical Engineer Edgar Bredin and his chief draughtsman, H.C Beaumont and represented a quantum leap forward in Irish locomotive design, being the first three-cylinder express locomotives built in the country. By the mid-1930s, the top link Dublin – Cork services had reached a critical loading point, where the existing fleet of 4-6-0 locomotives were stretched to their capabilities and beyond, particularly on the steep climb out of Cork. A larger, faster class of locomotive was needed. The three "Celtic Queens" gained iconic status among Irish enthusiasts and were the largest 4-6-0 locomotives to operate in the British Isles.

Details
Product
GSR800 - 801 Maca - CIE (FS)
Product Number
IRM1305
Type
Locomotive
Pack Weight (g)
850.0 g
Model Weight (g)
498.0
Model Length (mm)
268.8

Common Features:

  • Highly detailed OO scale model, 1:76.2
  • Die-cast metal chassis and footplate and Boiler with ABS plastic body
  • 498g Locomotive Weight
  • Scale lengths:
  • Locomotive: Scale length of 163.917mm over buffers.
  • Tender: Scale length of 104.916mm over buffers
  • Operation over a minimum radius of 438mm (2nd radius set-track).
  • Single style of 11mm solid wheel, to the new profile blackened 00 Gauge RP25-110 standard, set in blackened brass bearings or contact strips and conforming to Accurascale standards of 14.4mm back-to-back, on 2mm axles over 26mm pinpoints. Brake discs to be inset separate items.
  • Fully detailed die-cast underframes with all cylinders, battery boxes, cabinets and piping applied separately.
  • Eroded metal, plastic and wire detail parts, including (but not limited to) roof details, handrails, door handles, kick plates, lamp brackets, brake gear, brake discs, draw gear, vents and louvres.
  • Prism free flush glazing.
  • Blackened OO Gauge RP25-110 standard 11.3mm Bogie Wheels, 25.8mm Driving Wheels and 14.8mm tender wheels, set in blacked brass bearings and contact strips and conforming to accurascale standards of 14.4mm back-to-back on 2mm axles.
  • Fully fitted brake rigging, aligned to wheel centres fo OO gauge
  • Eroded metal, plastic and wire detail parts, including (but not limited to) handrails, lamp brackets, running gear, brake gear, draw gear, nameplates, cab side plates
  • Prism-free flush Cab glazing


High Performance Traction

  • Centrally mounted, High quality 5-pole skew-wound motor, with single flywheel, driving the locomotive
  • All wheel pickup
  • Helical gear box for maximum performance and slow speed running.
  • Gearing is arranged so the locomotive can achieve a scale maximum top speed of 100 mph (128.75 km/h)

Lighting and DCC Specifics

Lighting & DCC:

  • Power Pack Super Capacitors for uninterrupted power and super low speed running, even on dirty tracks.
  • Easy access to PCB for decoder fitting and access.
  • Designed to work with the ESU LOKSOUND V5 21-PIN (MTX) Decoder with easy access.
  • Decoder and Speaker located in Tender for easy access
  • Locomotive - Tender connection by multi-pin custom connector
  • Dual-LED Flickering Firebox as standard

DCC Sound Versions include:

  • ESU LokSound V5 DCC Sound Decoder
  • Fitted 25x25x7.5mm 8Ohm AccuraBass speaker in tender, with second ‘SugarCube’ speaker fitted in Locomotive Smokebox.
Lighting
Firebox Flicker Installed
DCC Specification
DCC Socket Format
21 Pin
Stay-Alive Power Pack Fitted
